Bag in Bag Vertical Form Fill Seal Machine

The Bag in Bag vertical machine incorporates proven reliability into its core design. As easy to run and maintain equipment, the Bag in Bag features quick changeover and setup. Proven to lower production costs and increase time efficiencies, this machinery is the perfect solution to your manufacturing needs.

The Bag in Bag machine provides an innovative solution to multiple products in an overwrap bag. Features on this system include a 14-inch maximum roll diameter, the Allen Bradley MicroLogix PLC, a 10.5-inch color touch screen, and much more. With cycle speed up to 100 BPM, you get speed and precision with each application.

This flexible VFFS solution can stretch your investment even farther. The upper section of the machine can produce pillow bags and bypass the lower section when an overwrap bag is not necessary. It also allows for different product and film to be run in pillow bags that are within the bag size limits of the top section.

Discover End-to-End Packaging Efficiency

Want to see how a Matrix VFFS bagger fits into a complete, automated packaging line? Watch our interactive animation featuring Matrix and other ProMach brands working together—case erecting, bagging, packing, palletizing, and stretch wrapping.

VFFS System Bag in Bag 1
VFFS System Bag in Bag 2
VFFS System Bag in Bag 3
VFFS System Bag in Bag 4
VFFS System Bag in Bag 5
VFFS-System-Bag-in-Bag-6
Walkthrough Matrix Elete Bag-in-Bag Flexible Packaging Machine
Matrix Elete Bag in bag System
Bag in Bag Vertical Form Fill Seal Solution

Features & Benefits

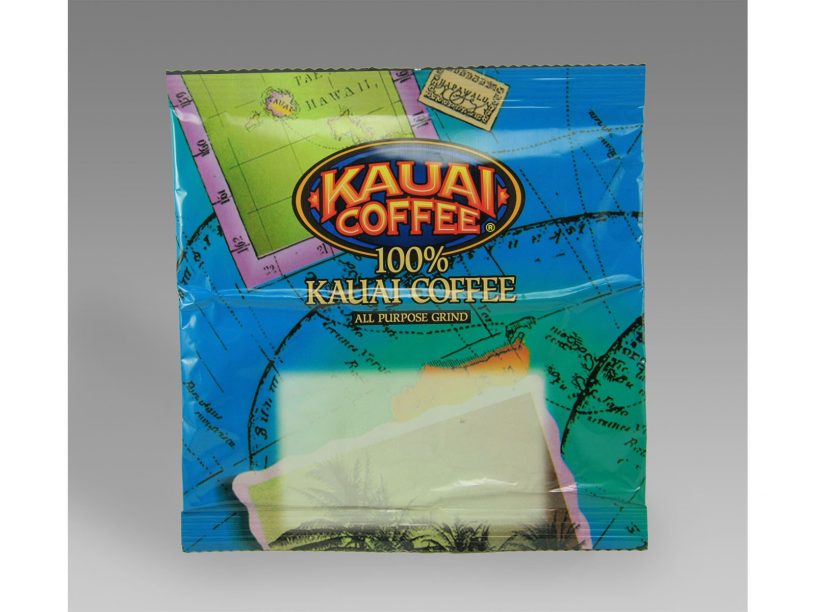

  • Standard "over wrapped" coffee filter paper bag-in-bag pillow bags
  • Standard single serve and multi-serve pillow bags
  • Allen Bradley MicroLogix PLC controlled with 10" touchscreens
  • Bag Sizes - Upper (Primary Bag)
    • Width: 3" - 9"
    • Length: 12" max.
  • Bag Sizes - Lower (Overwrap Bag)
    • Width: 3" 13"
    • Length: 15" max.
  • Stainless steel frame, NEMA 4X electrical cabinet, adjustable mounting feet
  • Stepper motors for film pull and jaw control
  • Counting software
  • Machine guards with interlocks
  • Air system "air dump and lock out"
  • Electrical system lock out
  • 40 program/job storage
  • Solid state temperature controls
  • Jaw jam-Knife inhibit system
  • "Over Center" seal jaw linkage
  • Smart Jaw optional
  • Quick change forming tube assemblies
  • Powered film unwinds
  • Automatic film tracking guides
  • Film "low/out" detectors
  • Fully compatible with all types of fillers

Options

  • Mechanical or heated hole punch
  • Flat bottom and gusseted/tucker attachment
  • Gas flush
  • Load shelf for heavier bags (several types available)
  • UL electrical system
  • Code date or label machine
  • Power unwind
  • Washdown

Bag Styles

Upper Section Bag Style

  • Pillow

Lower Section Bag Style

  • Pillow
  • Gusset
  • Flat bottom
