Options & Accessories: EC-E Checkweigher

Request More Information ›

Reliability and transparency of production data are the basis of all planning. The EC-E checkweigher from Matrix guarantees 100% data capture in ongoing production.

Capable of 150 weight values per minute, the EC-E is the right choice when needing accurate weighing of smaller sized pouches. The intuitive user interface ensures convenient operation via a clearly structured, 8-inch color touchscreen. The EC-E checkweigher precisely weighs each individual product, records individual values, and ejects incorrect weight packages via the fully automated sorter. Your data is correctly and completely collected and you have the certainty that only factory compliant products leave your production halls.

The checkweighers ease of use virtually excludes all incorrect entries. A reliable high-tech machine, especially in the dry foods sector, with a very good price-performance ratio in the EMFR entry segment.

Features & Benefits

  • WIPOTEC Weighing Technology EMFR Weigh Cells
  • Stainless steel frame
  • Stainless steel cabinet with integrated control system
  • Three NT30 belts (infeed, weighing and outfeed conveyors); Lightweight construction
  • Maintenance-free servo drives
  • One sorter attachment (air blast)
  • User friendly interface via 8” color TFT touchscreen display
  • Memory for 50 different product parameters (option to expand to 200)
  • Line synchronization with potential-free switching contacts/binary signals
  • Extensive statistical functions/histograms
  • High throughput rate of up to 150 pcs/min
  • Precise and reliable weighing results to increase plant efficiency
  • Very good price-performance ratio
  • Requirements-based modularity for the greatest flexibility

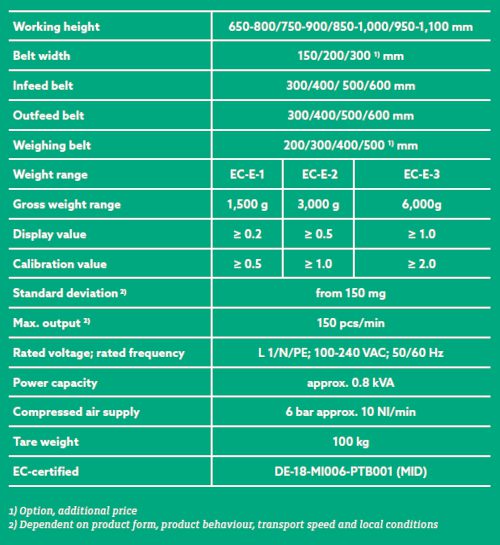

Technical Data

EC E Checkweigher VFFS Accessory Data
