Options & Accessories: Pro-Surveil Video System

LIVE CAMERA DISPLAY SYSTEM

Matrix offers a high-quality video camera and display system that allows for more efficient operation of your packaging line. This system will allow your operators to see in real-time high-resolution color the top of the scale. The display can be either mounted on the wall, your platform, or the Matrix bagger swing arm.

The Camera is an industrial unit housed in 316 Stainless Steel. It features 700 lines of resolution as well as infrared illuminators. This is an Analog camera and does not suffer from the choppy video performance that plagues digital cameras systems. It responds very quickly, allowing for detailed images to be sent by wire back to the display.

The display is a Video Surveillance specific unit intended for mission critical 24 – hour operation. It uses LED technology and measures 9” in diagonal. This monitor is housed in a 304 Stainless Steel Enclosure Unit comes with a 6-foot power cord fitted with a 120 VAC plug.

Features & Benefits

  • High resolution color
  • Can be mounted on wall or bagger swing arm
  • Camera housed in 316 stainless steel
  • 700 lines of resolution
  • Infrared illuminators
  • Analog camera
  • 9” digital display
  • Real-time video
  • Versatile mounting options
  • Easy to use

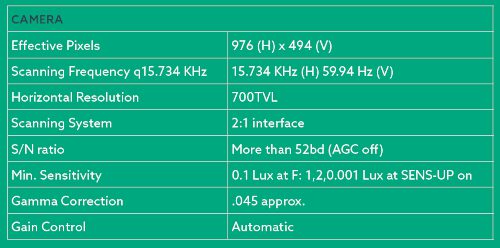

Camera Technical Data

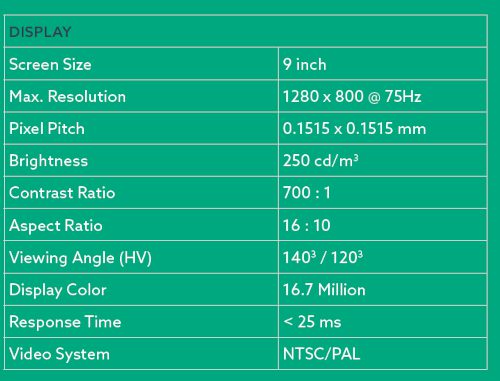

Display Technical Data
